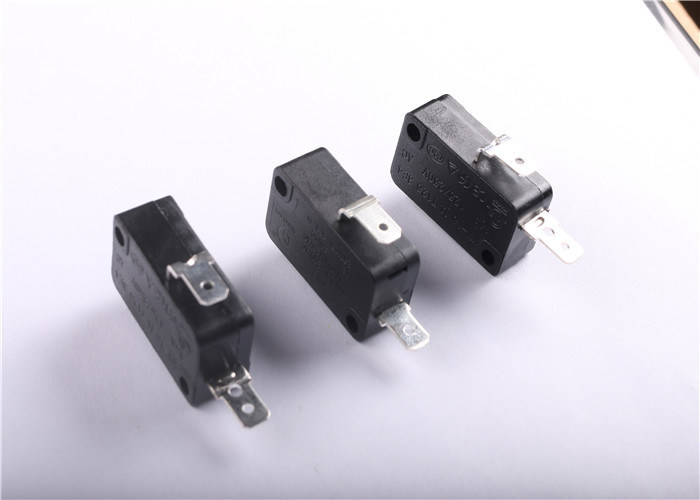

Electric Micro Switch Limit Switch 2 Pin Waterproof Hinge Short Lever Type

Product Details:

Place of Origin:	Guangzhou, China,
Brand Name:	Guangzhou beiwen electric appliance technology co. LTD
Certification:	CQC，TUV,CB,ROHS.US
Model Number:	BWD-16

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	negotiable
Packaging Details:	Carton packing. Packing according to the size of the goods or the customer's requirement.
Delivery Time:	5-8word dasy
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000+30000+7

Contact Now

Detailed Product Description

Tempjerature Limits:	120°C Max	Contact Resistance:	＜50mΩ Max
Insulation Resistance:	＞100MΩ Mix	Withstand Voltage:	2500VAC
Electrical Life:	＞10000 Hours	The Shell Material:	Nylon/PC
Application::	Electric Equipment
High Light:	micro switch limit switch , micro momentary push button switch

Micro Electric switch/push button switch 1press-button 250v t125 r11

Product Description

100% brand new and high quality

15A 125/250VAC 16(8)A 250VAC 16(4)A 250VAC

Fixture style: snap-in

Pin Length: 9.7mm

Pin number: 3

Colour: black

Specification:
Rated Load: 15A 125/250VAC 16(8)A 250VAC 16(4)A 250VAC
Contact Resistance: ≤ 50MΩ
Insulation Resistance: ≥ 100MΩ
Dielectric intensity: ≥ 750VAC/1Min
Life: ≥10000 Cycles

Quality:
Smart car, compact design, suitable for small spaces
High

Parameters:

Operating Speed		0.1mm-1m/s( Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation Resistance		≥100MΩ (500VDC)
Contact Resistance		≤100MΩ (Initial value)
Test Voltage	Between each terminals of the same polarity	AC1000V,50/60HZ, 1min.
	Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts	AC1500V, 50/60HZ, 1min.
Vibration Resistance		10-55HZ, 1.5mm Double amplitude
Shock Resistance		Destruction: OF>0.5N:1000m/s2 (approx.100G)max.
		Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Serivece Life		Mechanical ≥ 10,000,000cycles or 1,000,000cycles
		Electrical ≥ 50,000cycles or 100,000cycles
Weight		Approx. 6.2g(No lever).
Trade Terms		Price negotiation Payment: negotiation,50% deposit before production, balance 50% before shipment
Certificates		ISO9001&TS16949 ENEC CQC RoHS & Reach
