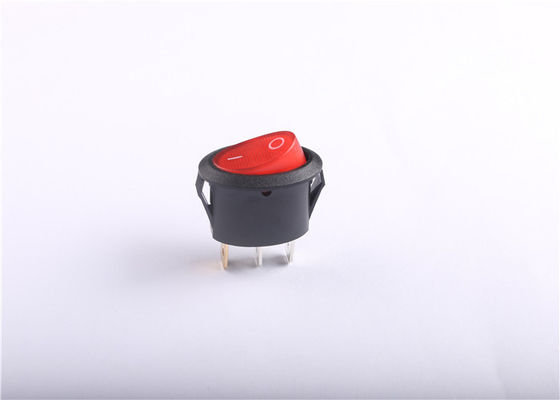

Waterproof oval automotive rocker switch

Waterproof oval automotive rocker switch

    • Waterproof oval automotive rocker switch
    • Waterproof oval automotive rocker switch
    • Waterproof oval automotive rocker switch
    • Waterproof oval automotive rocker switch
  • Waterproof oval automotive rocker switch

    Product Details:

    Place of Origin: Guangzhou, China,
    Brand Name: Guangzhou beiwen electric appliance technology co. LTD
    Certification: CQC,TUV,CB,ROHS.US
    Model Number: BR12

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: negotiable
    Packaging Details: Carton packing. Packing according to the size of the goods or the customer's requirement.
    Delivery Time: 5-8word dasy
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30000+30000+7
    Contact Now
    Detailed Product Description
    Tempjerature Limits: 120°C Max Contact Resistance: <50mΩ Max
    Insulation Resistance: >100MΩ Mix Withstand Voltage: 2500VAC
    Electrical Life: >10000 Hours The Shell Material: Nylon/PC
    Rated Load: 12[4]A 250VAC
    High Light:

    on off on momentary rocker switch

    ,

    mini rocker switch on off on

    1.DESCRIPTION
    Rocker switch
    Single pole single throw
    RatedVoltageandAmps :T120/55
    6A 250Vac1E4 12(4)A 250Vac
    Certificate :CQC,TUV,CB CE
    - Temperature limits :120%C Max.
    Dielectric strength;2500VAac
    Insulation resistance: >100MQ
    Contactresistance : <50m2
    Operation cycles: >10000





    2.Switch material:
    Base plastic ---Nylon 66
    Button plastic ---ABS or Nylon 66
    Copper parts such as terminal---- Copper H62
    Terminal surface treatment----- silver plating
    Contact----Ag or Composite silver
    Spring----Tungsten steel
    Waterproof cap----PVC (It has waterproof cap if required. )


    3. Current Feature and Safety Quality Certifications:
    (Current Feature etc. Can be made according to customers'need. )
    Initial contact resistance: 20m ohm (max. )
    Insulation resistance: 100M ohm (min, ) at 500VDC
    Dielectric strength: 1, 000VAC for 1 minute
    Electrical life: 10, 000 cycles
    Temperature range: -20 to +125 degrees in Celsius
    Switch for Class II appliances
    Base: Nylon 66, UL rated 94V-2 min
    Actuator: PBT / Nylon 66, UL rated 94V-2 min
    Spring: Piano wire
    Contact: mr chen

    Terminals: Silver plated Copper, soldering, quick connecting and PCB terminals offeredResistance to tracking(PTI) :175V
    Classofappliance : ll
    - Degree of protection; IP00





    4.Introduction:
    This kind of rocker switch is widely used in Electronic Equipments and Electrical Appliances such as Household Electric Tool,Electric Appliance,  Electric Tool, Motor Vehicle Electronic Instrument, Medical Apparatus and Instruments, Communication Equipment, Automated Equipment, Mechanical Equipment, Large Game Machine, Lamps, etc. It is mainly for cutting off, connecting, transforming and controlling current.

    Waterproof oval automotive rocker switch 0Waterproof oval automotive rocker switch 1Waterproof oval automotive rocker switch 2
