High Voltage Rotary Switch With Fixed Stem

High quality,fast shipping and very good service.It deserves 5 starts. We believe can do more and more business in the near future.

—— Mr Jeewan Nilwala

I'm Online Chat Now

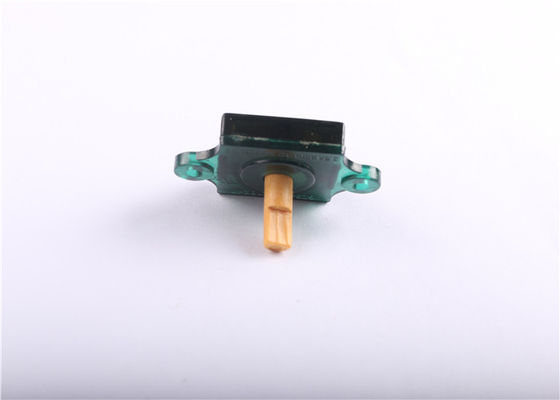

High Voltage Rotary Switch With Fixed Stem

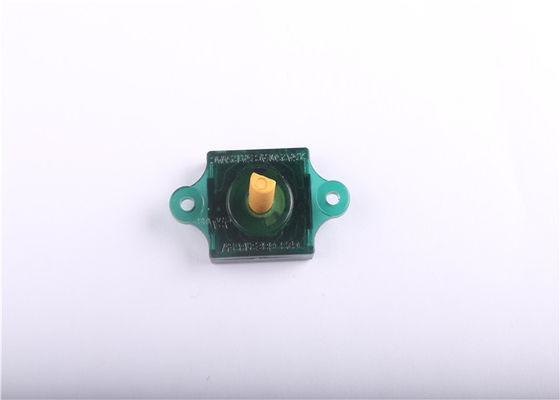

High Voltage Rotary Switch With Fixed Stem
High Voltage Rotary Switch With Fixed Stem High Voltage Rotary Switch With Fixed Stem

Large Image :  High Voltage Rotary Switch With Fixed Stem

Product Details:

Place of Origin: Guangzhou, China,
Brand Name: Guangzhou beiwen electric appliance technology co. LTD
Certification: CQC,TUV,CB,ROHS.US
Model Number: BR15

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: negotiable
Packaging Details: Carton packing. Packing according to the size of the goods or the customer's requirement.
Delivery Time: 5-8word dasy
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000+30000+7
Detailed Product Description
Tempjerature Limits: 120°C Max Contact Resistance: <50mΩ Max
Insulation Resistance: >100MΩ Mix Withstand Voltage: 2500VAC
Electrical Life: >10000 Hours The Shell Material: Nylon/PC
High Light:

rotary on off switch


small rotary switch

Condition for Reflow

1. Heating method

Double heating method with infrared heater.

2. Temperature measurement

Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape

should be used for fix measurement.

3. Temperature profile


High Voltage Rotary Switch With Fixed Stem 0

(1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260°C.

(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.

Manual Soldering

Items Condition
Soldering temperature 350°C max.
Duration of soldering 3s max.
Capacity of soldering iron 60W max.

1. Consult with us for availability of TACT switch washing.

2. Prevent flux penetration from the top side of the TACT switch.

3. Switch terminals and a PC board should not be coated with flux prior to soldering.

4. The second soldering should be done after the switch returns to normal temperature.

5. Use the flux with a specific gravity of min.0.81

Use Notes:

1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characterisics due to the different conditions, please note that when in use

2. The use of through holes brushes circuit board and other recommended board, due to the heart stress of change, so please pre-conditions on the welding and full recognition.

3. Welding on the set of conditions needed to confirm the actual conditions of mass production.
