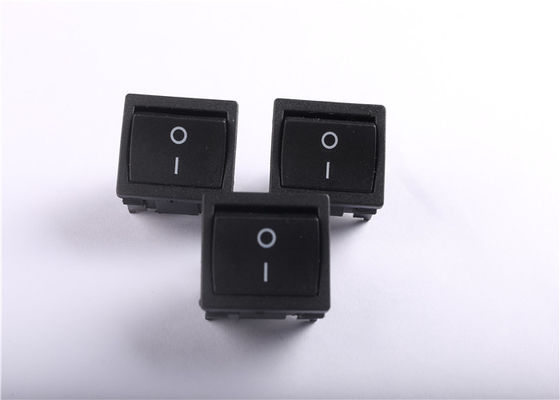

16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life

16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life

    • 16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life
    • 16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life
  • 16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life

    Product Details:

    Place of Origin: CHINA GUANGZHOU
    Brand Name: BWVN
    Certification: CQC CB KC CCC CE UR ROHS
    Model Number: kcd1-115

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: Negotiate
    Packaging Details: Carton packing. Packing according to the size of the goods or the customer's requirement.
    Delivery Time: 3~7day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30000+30000+7
    Contact Now
    Detailed Product Description
    Model NO.:: KCD1-106-1 2P Housing Color:: Whtie And Black
    Application:: Electric Equipment Item:: On-r 3 Position Rocker Switch Fo
    Max. Voltage:: 250VAC Weight:: 4.2g

    16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life





    —Production Specification—
    Rating 16A/250VAC (CQC,K ) 16A/250VAC T100/55 (TUV)
    Rated Load 16A 250V AC
    Contact Resistance 100MΩ Max
    Dielectric Intensity 1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
    Withstand Voltage 1500VAC/min
    Operating Temperature -25~85°C
    Insulation Resistance 500VDC, 100MΩ Min
    Electrical Life ≥10,000 cycles
    Pins (Terminals) 4 pcs
    Housing material PA66
    Push Button PC
    -Production Material—
    Base plastic Nylon 66
    Button plastic PC
    Copper parts such as terminal Copper
    Terminal surface treatment Silver plating
    Contact Ag or Composite silver
    Spring Tungsten steel
    Cover plastic PC
    — Advantage —
    . CQC, TUV, K, RoHS approved
    . Used for home appliance and electronic equipments
    . Machining as you required
    . Custom made according your samples, drawings, pictures or photos

    16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life16A 250VAC ON OFF Rocker Switch , 4 terminal rocker switch 10000 cycles Electrical Life
