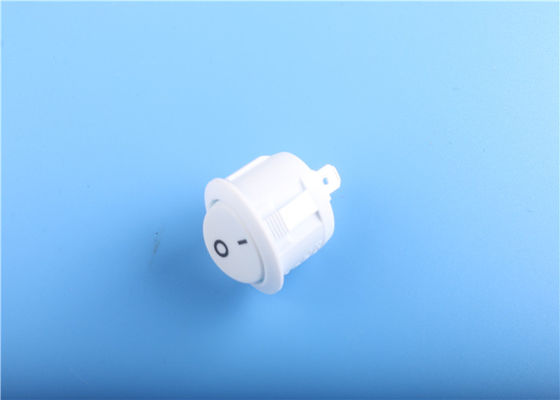

Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter

Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter

  • Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter
  • Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter
  • Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter
Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter
Product Details:
Place of Origin: Guangzhou, China,
Brand Name: Guangzhou beiwen electric appliance technology co. LTD
Certification: CQC,TUV,CB,ROHS.US.CE
Model Number: BR13
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negotiable
Packaging Details: Carton packing. Packing according to the size of the goods or the customer's requirement.
Delivery Time: 5-8word dasy
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000+30000+7
Contact Now
Detailed Product Description
Tempjerature Limits: 120°C Max Contact Resistance: <50mΩ Max
Insulation Resistance: >100MΩ Mix Electrical Life: >10000 Hours
Rated Load: 12[4]A 250VAC Structure: Power Built-in Type
Type: Normal Open
High Light:

small round rocker switch

,

illuminated rocker light switch

Push Button Switch, Light Switch, Micro Switch



Product Description


kcd3-5
Φ20mm diameter
220v,110v,36v,48v,12v
1NO, Momentary
Domed profile
Crust material: Zn-Al. alloy
Head Color: Red, Green, Yellow, Blue, White, Black.
IP Degree: IP65




Model kcd3-5
Illuminated Options Non-illuminated or illuminated
Front Shape Round Square
Terminal Type Screw / Pin (2.8x0.5mm)
Max. Switch Rating 6a250v,10a250v,13a250v,220v,110v,36v,48V DC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000mΩ
Dielectric Strength 2000VAC
Operation Temp. -20°c ~ +55°c
Mechanical Life 1, 000, 000cycles
Electrical Life 20, 000cycles
Contact Material Silver Alloy
Torque 5~14Nm
Operation Pressure 5N
IP Degree IP65 / IK08
Material
Actuator Stainless Steel / Brass / PBT
Body StainlessSteel / Brass / Zin-Al Alloy
Base PBT
Color RED, GREEN, YELLOW, ORANGE, BLUE, WHITE, BLACK
Actuator(Zn-Al.alloy)


Specification of this series switch as below:






Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter 0Push Button 3 Way Illuminated Rocker Light Switch 12 Volt Φ20mm Diameter 1
